Stainless Steel Wire Mesh
Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Category:
Product Details
Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
Our Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L and 321.
Plain weave
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Twill Weave
The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
Dutch Twilled Weaving
The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
| Mesh | Wire Diameter (MM) | Material (AISI) |
| 12meshX64mesh | 0.58/0.40 | 304 or 316 |
| 24meshX110mesh | 0.36/0.25 | 304 or 316 |
| 14meshX88mesh | 0.50/0.33 | 304 or 316 |
| 30meshX150mesh | 0.18/0.14 | 304 or 316 |
| 40meshX200mesh | 0.14/0.11 | 304 or 316 |
| 50meshX250mesh | 0.10/0.071 | 304 or 316 |
| 80meshX700mesh | 0.06/0.05 | 304 or 316 |
| 165meshX800mesh | 0.071/0.040 | 304 or 316 |
| 165meshX1400mesh | 0.05/0.032 | 304 or 316 |
| 200meshX1800mesh | 0.05/0.03 | 304 or 316 |
| 325meshX2300mesh | 0.030/0.025 | 316L |
| 400meshX2800mesh | 0.030/0.02 | 316L |

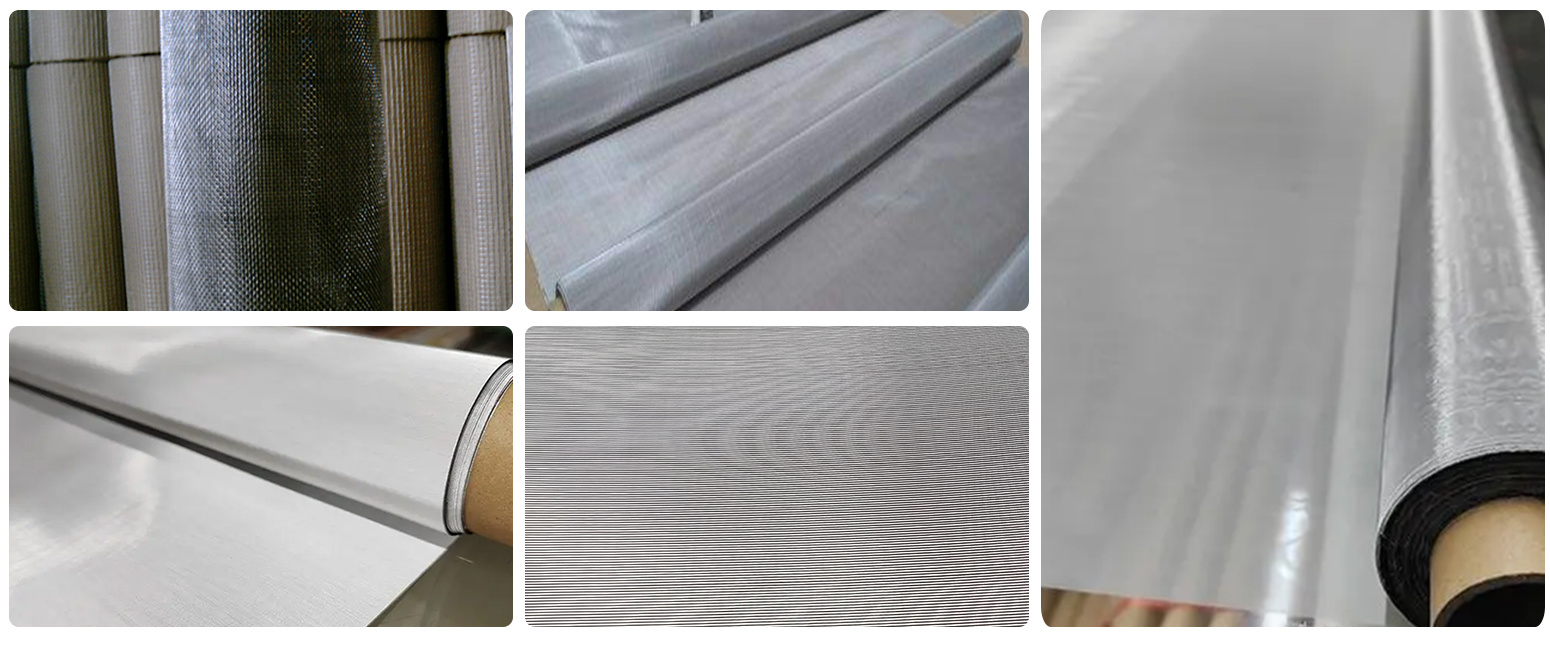

Product display
Production Process
Company Introduction
Anping Hua Cheng Wire and Netting Making Co.,Ltd. was founded in the year 2004, it located in The Development Zone of Xu Tuan, Anping County, which is the wire mesh industry base in China.This is a modern corporation,specializing in scientific research,production and exportation of Wire mesh,finished mesh products and wire mesh machines.
We mainly produce stainless steel wire mesh,welded wire mesh,hexagonal wire mesh,gabion wire mesh, reinforced Mike Mat,crimped wire mesh, chain link fences,stainless steel wire and barbed wire.
