Crimped Wire Mesh Machine

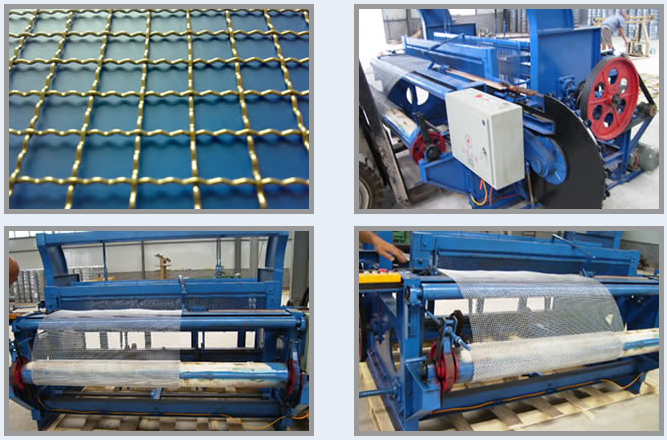

Our crimped wire mesh machine may complete a series of working procedures from mesh rolling to weaving automatically.
Category:
Product Details
Performance characteristic
Our crimped wire mesh machine may complete a series of working procedures from mesh rolling to weaving automatically.
Weaving width of 0.9-2.5m, wire diameter of 0.4-8.0mm, mesh opening 1mm*1mm-80mm*80mm, weaving speed may reach 53 shuttles per minute, which has the characteristics of working * time-saving, high speed, and one shot forming.
Mesh products from this equipment go through working procedures of rolling-weaving to clip two bends on the corresponding position with tight structure, which are widely applied in coal, metallurgy, construction, storages, aquiculture and poultry, and chemical indeustry, etc.
Main technical parameter
| Weaving Width | Outside Size | Power | Weight |
| 1.0m(44") | 2.5*2.5*1.5 | 0.75 | 750 |
| 1.2m(52") | 2.6*2.5*1.5 | 1.1 | 800 |
| 1.3m(56") | 2.8*2.5*1.5 | 1.1 | 1000 |
| 1.5m(63") | 3*3*1.7 | 1.5 | 1200 |
| 1.8m(75") | 3*3*1.7 | 2.2 | 1400 |
| 2.0m(212") | 3.3*3*1.8 | 3.0 | 1600 |
| 2.3m(212") | 3.5*3*1.8 | 3.0 | 1800 |
| Weaving Width | Outside Size | Power | Weight(kg) |
| 1.0m(44") | 2.5*2*1.5 | 0.75 | 800 |
| 1.2m(52") | 2.8*2*1.5 | 1.1 | 1000 |
| 1.3m(56") | 3.2*2*1.5 | 1.1 | 1100 |
| 1.5m(63") | 3.5*2.5*1.7 | 1.5 | 1250 |
| 1.8m(75") | 4*2.5*1.7 | 1.5 | 1500 |
| 2.0m(212") | 4.2*3*1.8 | 2.2 | 1800 |
| 2.3m(212") | 4.5*3*1.8 | 2.2 | 2000 |
| 2.5m | 4.6*3*1.8 | 3.0 | 2200 |
| 3.0m | 5.0*3*2.0 | 3.0 | 2500 |
| 3.5m | 5.5*3*2.0 | 4.0 | 3000 |
| 4m | 5.8*3*2.0 | 4.0 | 3500 |
Production Process
Company Introduction
Anping Hua Cheng Wire and Netting Making Co.,Ltd. was founded in the year 2004, it located in The Development Zone of Xu Tuan, Anping County, which is the wire mesh industry base in China.This is a modern corporation,specializing in scientific research,production and exportation of Wire mesh,finished mesh products and wire mesh machines.
We mainly produce stainless steel wire mesh,welded wire mesh,hexagonal wire mesh,gabion wire mesh, reinforced Mike Mat,crimped wire mesh, chain link fences,stainless steel wire and barbed wire.
