Gabion Machine
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc.
Tip:
Category:
Product Details
Performance characteristic
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding material.
Main technical parameter
| Specification | Max. Width(mm) | Max. Dia(mm) | Twisting No. | Main Shaft Speed | Motor(kw) | Theoretical Yield Speed | Dimension (length*width*height) (mm) |
Weight(t) | |
| Twisting net No/min | m/h | ||||||||
| 60*80 | 2300 | 3 | 3 | 25 | 11 | 25 | 165 | 5200*1400*2400 | 13 |
| 3300 | 3 | 3 | 25 | 15 | 25 | 165 | 6200*1400*2400 | 14 | |
| 4300 | 3 | 3 | 25 | 22 | 25 | 165 | 7200*1400*2400 | 15 | |
| 80*100 | 2300 | 3 | 3 | 25 | 11 | 25 | 195 | 5200*1400*2400 | 13 |
| 3300 | 3 | 3 | 25 | 15 | 25 | 195 | 6200*1400*2400 | 14 | |
| 4300 | 3 | 3 | 25 | 22 | 25 | 195 | 7200*1400*2400 | 15 | |
| 100*120 | 3000 | 3 | 3 | 25 | 11 | 25 | 225 | 5200*1400*2400 | 13 |
| 3300 | 3 | 3 | 25 | 15 | 25 | 225 | 6200*1400*2400 | 14 | |
| 4300 | 3 | 3 | 25 | 22 | 25 | 225 | 7200*1400*2400 | 15 | |
| 100*137 | 2300 | 3 | 3 | 25 | 22 | 25 | 250 | 5200*1400*2400 | 13 |
| 3300 | 3 | 3 | 25 | 22 | 25 | 250 | 6200*1400*2400 | 14 | |
| 4300 | 3 | 3 | 25 | 22 | 25 | 250 | 7200*1400*2400 | 15 | |
| 120*150 | 2300 | 3 | 3 | 25 | 22 | 25 | 216 | 5200*1400*2400 | 13 |
| 3300 | 3 | 3 | 25 | 22 | 25 | 216 | 6200*1400*2400 | 14 | |
| 4300 | 3 | 3 | 25 | 22 | 25 | 216 | 7200*1400*2400 | 15 | |
Production Process
Company Introduction
Anping Hua Cheng Wire and Netting Making Co.,Ltd. was founded in the year 2004, it located in The Development Zone of Xu Tuan, Anping County, which is the wire mesh industry base in China.This is a modern corporation,specializing in scientific research,production and exportation of Wire mesh,finished mesh products and wire mesh machines.
We mainly produce stainless steel wire mesh,welded wire mesh,hexagonal wire mesh,gabion wire mesh, reinforced Mike Mat,crimped wire mesh, chain link fences,stainless steel wire and barbed wire.

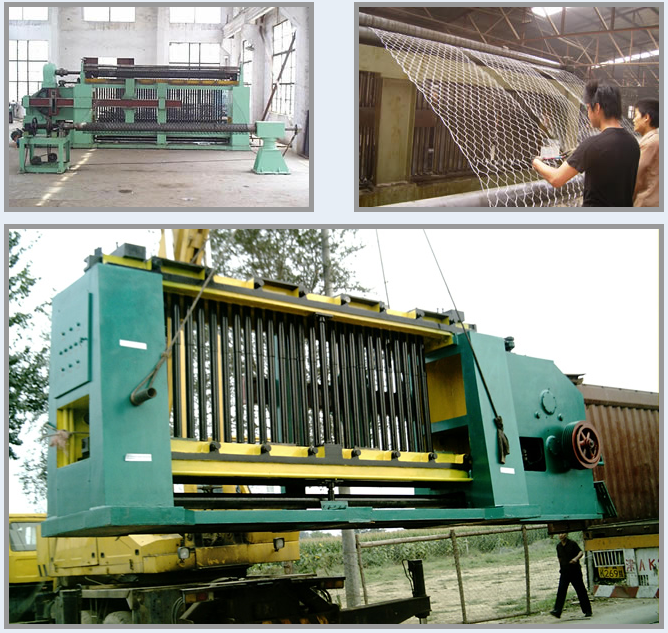

Factory photography
