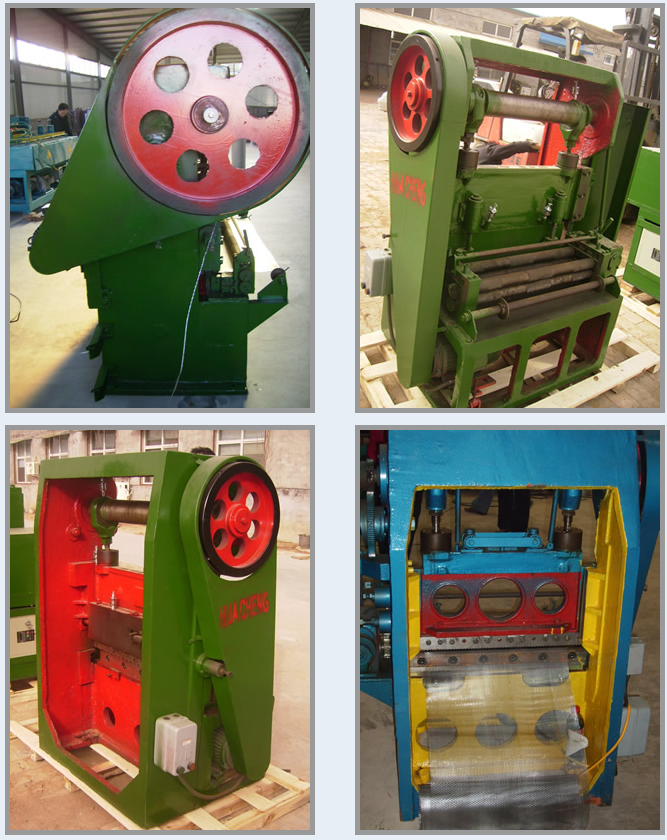

Expanded Metal Machine
Include series HC25-6.3, HC25-16, HC25-25, HC25-63, HC25-160. They can be used for the production of stainless steel plate mesh
Category:
Product Details
Performance characteristic
Include series HC25-6.3, HC25-16, HC25-25, HC25-63, HC25-160. They can be used for the production of stainless steel plate mesh, galvanized steel plate mesh, aluminum plate mesh, brass plate mesh and other material, with thickness range of 0.2mm~6mm, with maximum breadth of 2,000mm, with diamond style netting. The plate mesh is well used in protection of cement in building or construction, protection of mechanical devices, craftwork making, sound box screen, and fence of expressway, stadium, green, or reinforcement in building, high way or bridge.
Main technical parameter
| Type | HC25-6.3 | HC25-16 | HC25-25 |
| Depth | =1.0mm | =1.0mm | =1.5mm |
| Width | 500mm | 1000mm | 1250mm |
| Times | 180/min | 150/min | 150/min |
| Distance | 0-1.15mm | 0-1.2mm | 0-1.2mm |
| Length of Mesh | =20mm | =25mm | =30mm |
| Motor | 2.2kw | 3kw | 4kw |
| Weight | 0.95T | 2T | 3T |
| Measuremeent | 950*570*1780 | 1800*1320*1550 | 1940*1600*2010 |
| Type | HC25-63 | HC26-63B | HC25-160A | HC25-160B |
| Depth | =2.5mm | =3.0mm | =6.0mm | =6.0mm |
| Width | 2000mm | 2000mm | 2500mm | 2500mm |
| Times | 70/min | 45/min | 70/min | 20/min |
| Distance | 0-4mm | 0-4mm | 0-7mm | 0-7mm |
| Length of Mesh | 100mm | =200mm | 250mm | 250mm |
| Motor | 11kw | 11kw | 22kw | 22kw |
| Weight | 10T | 10T | 18T | 20T |
| Measuremeent | 2400*3500*2300 | 2400*3500*2300 | 5500*1750*3300 | 5500*1750*3300 |
Production Process
Company Introduction
Anping Hua Cheng Wire and Netting Making Co.,Ltd. was founded in the year 2004, it located in The Development Zone of Xu Tuan, Anping County, which is the wire mesh industry base in China.This is a modern corporation,specializing in scientific research,production and exportation of Wire mesh,finished mesh products and wire mesh machines.
We mainly produce stainless steel wire mesh,welded wire mesh,hexagonal wire mesh,gabion wire mesh, reinforced Mike Mat,crimped wire mesh, chain link fences,stainless steel wire and barbed wire.

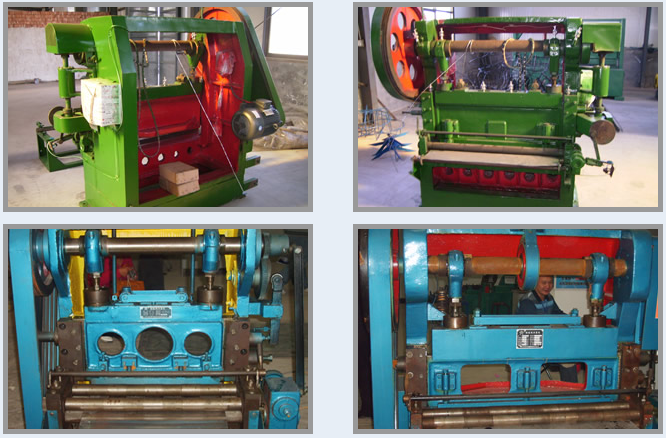

Factory photography
